Endmills – Carbide

Name: Endmills - Carbide - HPS
SKU: E484
Availability: InStock

E484

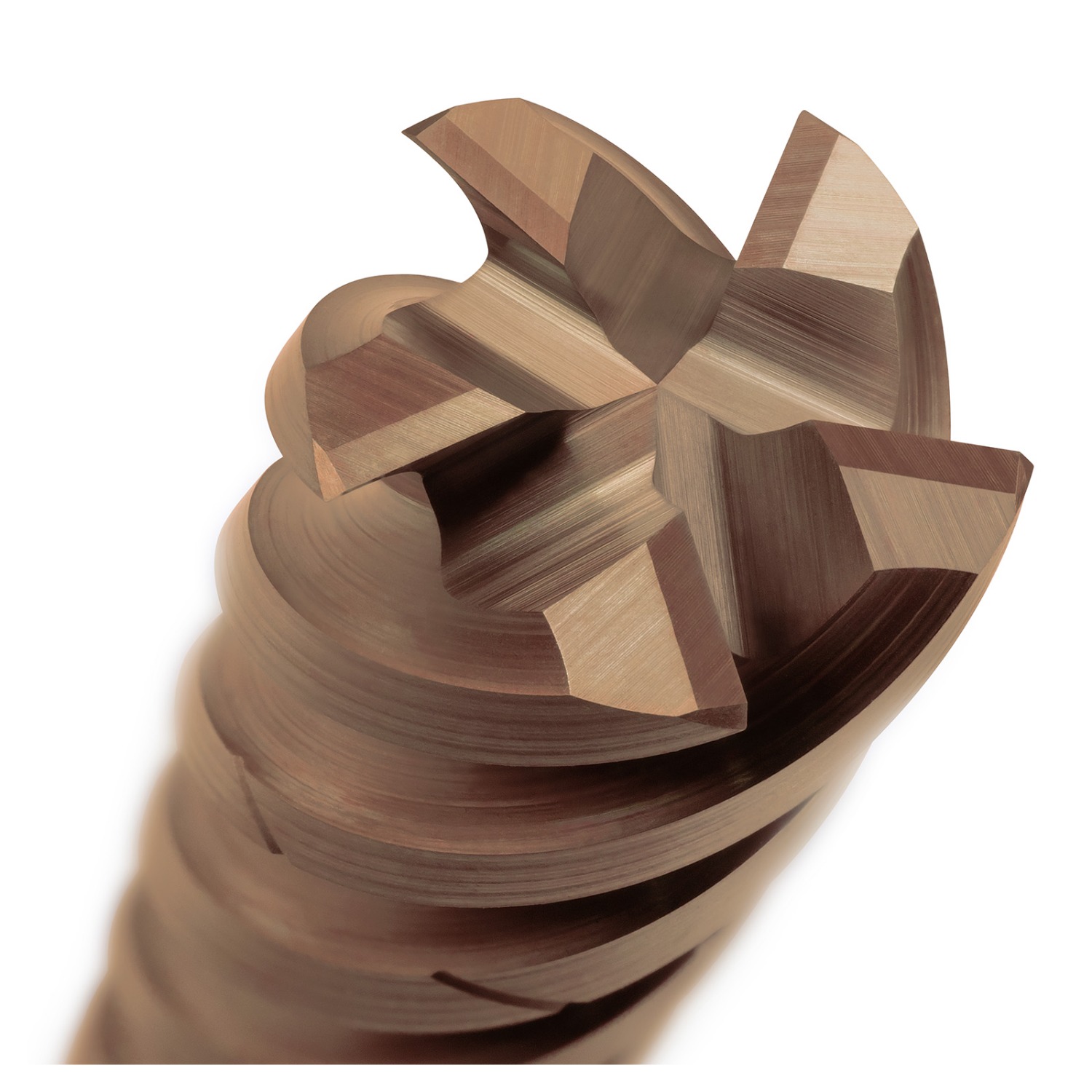

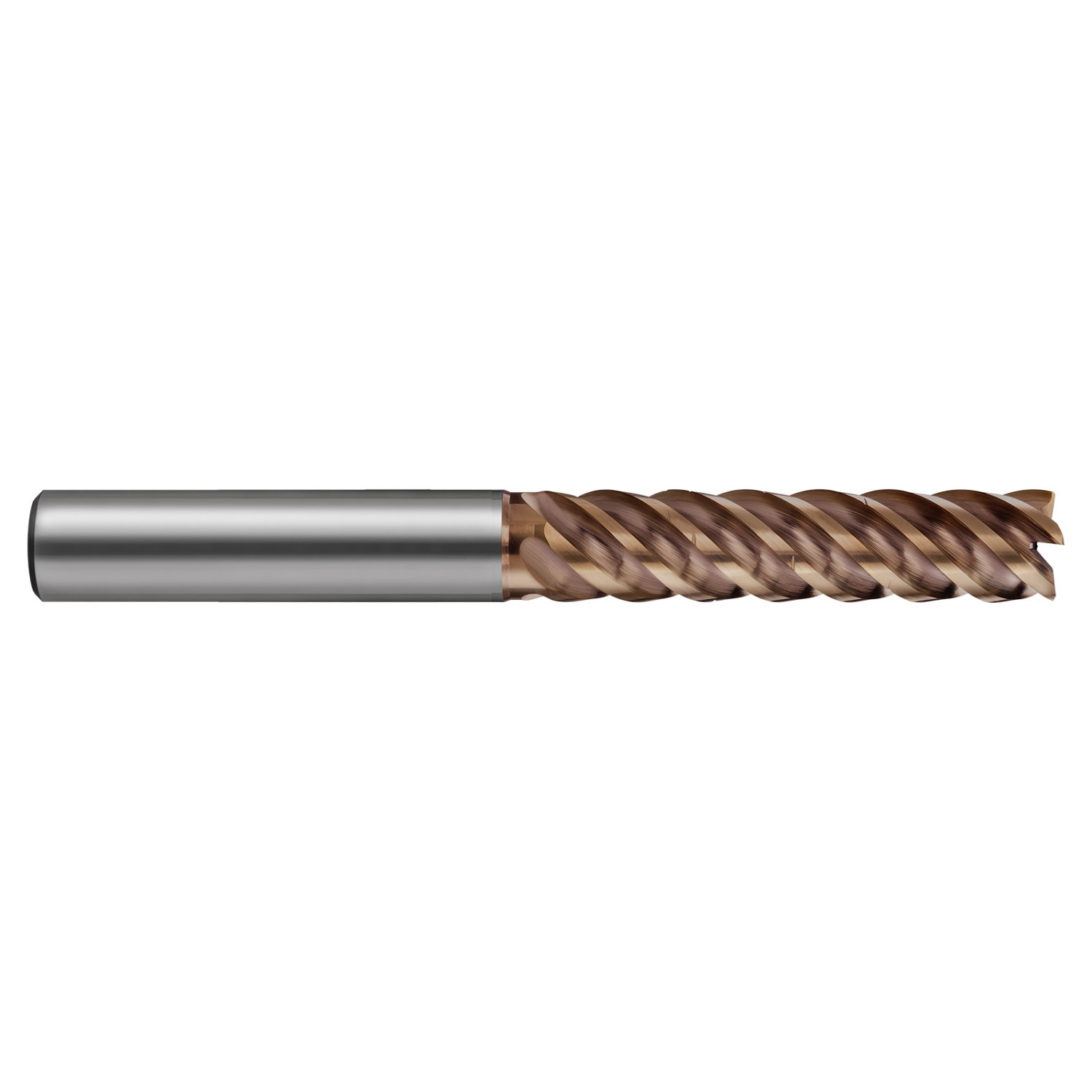

Harmony UNI 4XL is designed for Trochoidal/Dynamic machining strategies in general steels, cast iron & stainless steels.

Download PDF

Range

Features

Application

Specification

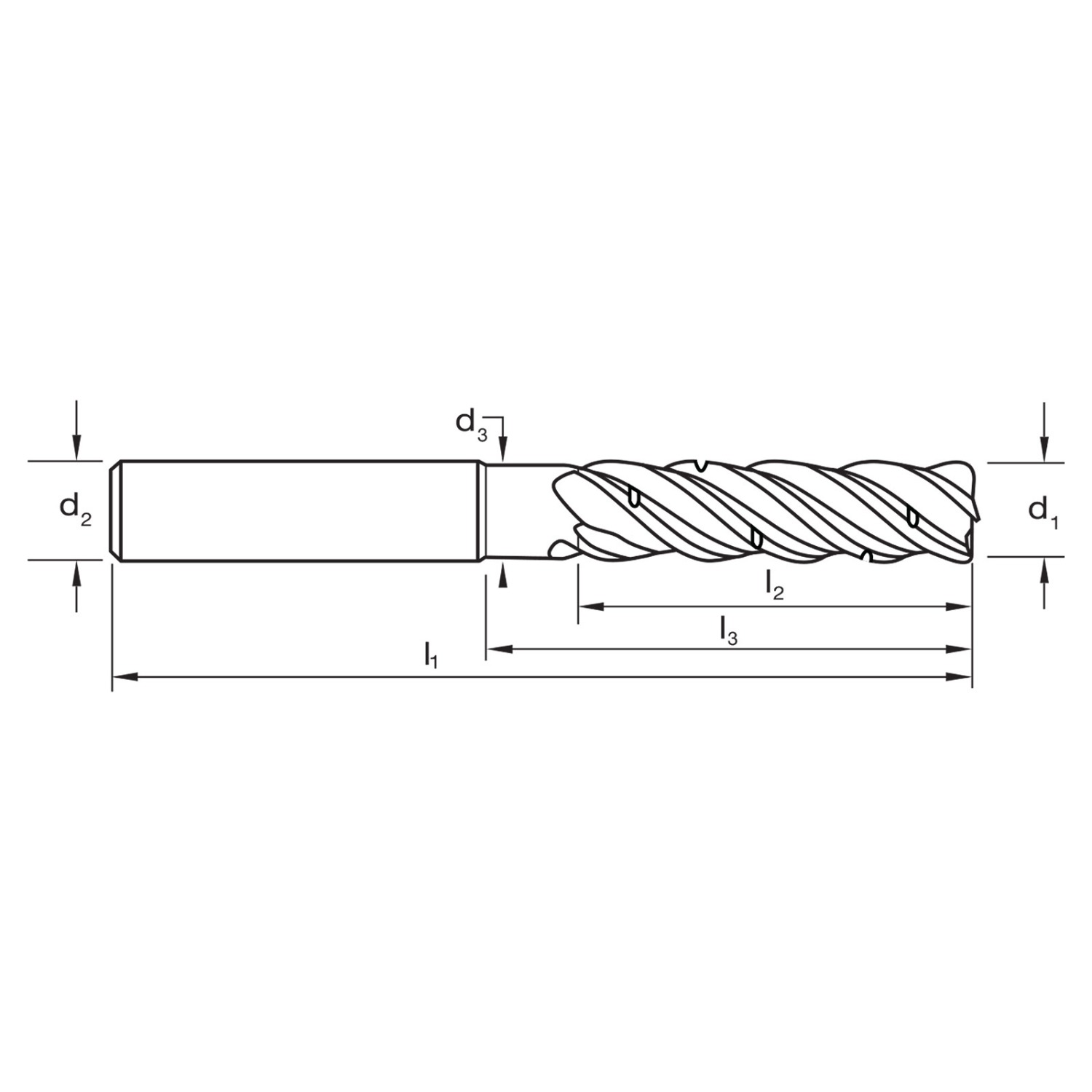

Item #

Diameter d1 (mm)

Length l1 (mm)

Length l2 (mm)

Length l3 (mm)

Diameter d2 (mm)

Diameter d3 (mm)

Rad

Info

E4840600

6.00

5.8

0.2

E4840800

8.00

7.6

0.2

E4841000

10.00

9.5

0.3

E4841200

12.00

11.5

0.35

E4841600

16.00

120

15.5

0.4

E4842000

20.00

140

19.5

0.5

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270	910MPa
P	5	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Quenched & Tempered	300	1010MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275	930MPa
P	8	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	300	1010MPa
P	9	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	350	1180MPa
P	10	Steel - High alloy, cast & tool	Annealed	200	680MPa
P	11	Steel - High alloy, cast & tool	Hardened & Tempered	325	1100MPa
P	12	Steel - Corrosion resistant & cast - Ferritic / Martensitic	Annealed	200	680MPa
P	13	Steel - Corrosion resistant & cast - Martensitic	Quenched & Tempered	240	810MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180	610MPa
M	14.2	Stainless Steel - Duplex		250	840MPa
M	14.3	Stainless Steel - Precipitation Hardening		250	840MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic	Cast	180	610MPa
K	16	Cast Iron, Grey (GG) - Pearlitic	Cast	260	880MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic	Cast	160	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic	Cast	250	840MPa
K	19	Cast Iron, Malleable - Ferritic	Cast	130	460MPa
K	20	Cast Iron, Malleable - Pearlitic	Cast	230	780MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatabl		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	25	Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatabl		130HB	460MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1		110HB	390MPa
N	27	Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)		90HB	320MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
N	29	Non-metallic - Thermosetting & fiber-reinforced plastics
N	30	Non-metallic - Hard rubber, wood etc.
S	31	High temperature alloys - Fe based	Annealed	200HB	680MPa
S	32	High temperature alloys - Fe based	Age Hardened	280HB	950MPa
S	33	High temperature alloys - Ni / Co based	Annealed	250HB	840MPa
S	34	High temperature alloys - Ni / Co based	Age Hardened	350HB	1180MPa
S	35	High temperature alloys - Ni / Co based	Cast	320HB	1080MPa
S	36	Titanium & Titanium alloys - CP Titanium			400MPa
S	37.1	Titanium & Titanium alloys - Alpha alloys			860MPa
S	37.2	Titanium & Titanium alloys - Alpha / Beta alloys	Annealed		960MPa
S	37.3	Titanium & Titanium alloys - Alpha / Beta alloys	Age Hardened		1170MPa
S	37.4	Titanium & Titanium alloys - Beta alloys	Annealed		830MPa
S	37.5	Titanium & Titanium alloys - Beta alloys	Age Hardened		1400MPa
H	38.1	Hardened steel	Hardened & Tempered	45HRC
H	38.2	Hardened steel	Hardened & Tempered	55HRC
H	39.1	Hardened steel	Hardened & Tempered	58HRC
H	39.2	Hardened steel	Hardened & Tempered	62HRC
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa
H	41	Cast Iron	Hardened & Tempered	55HRC

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
