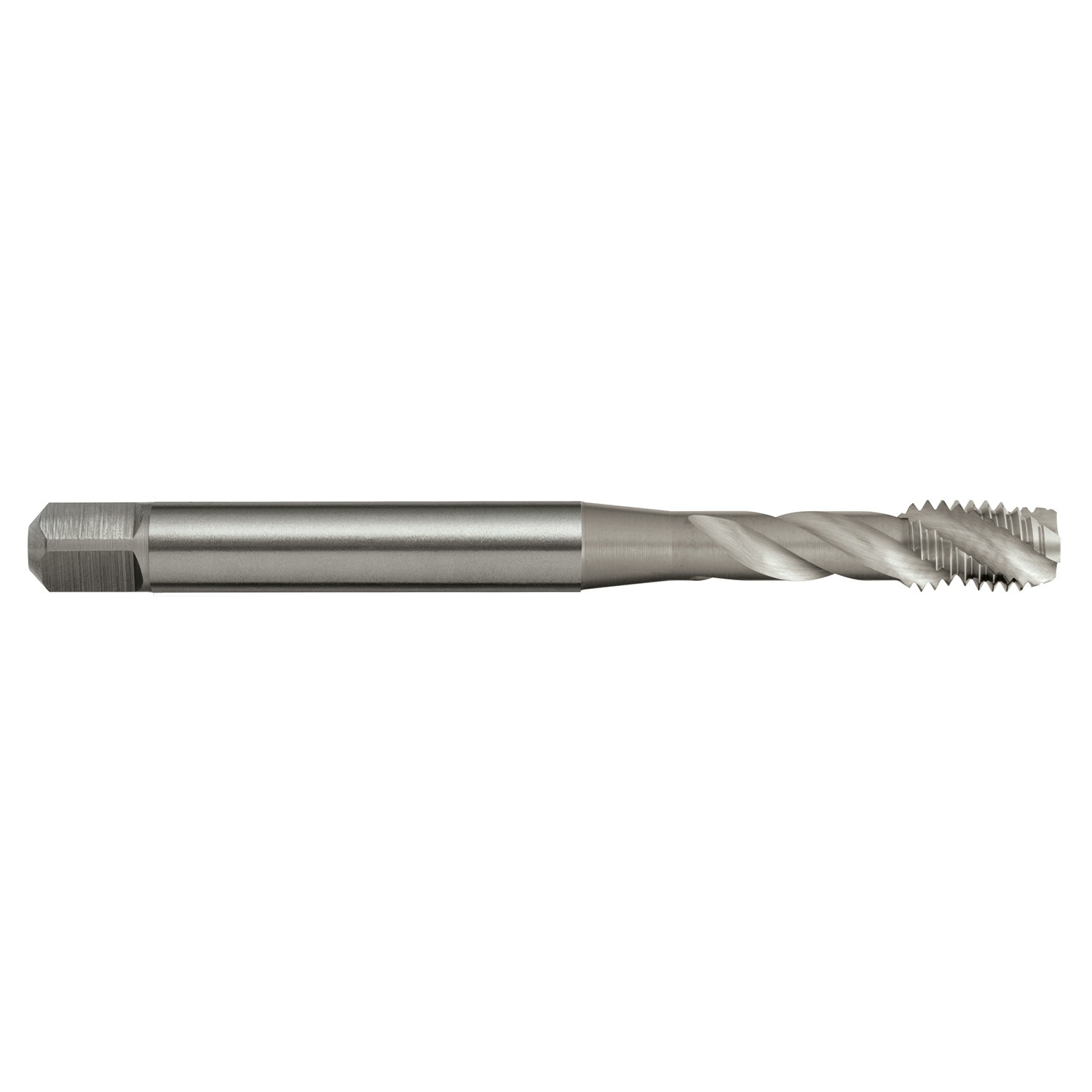

Spiral Flute Tap DIN - Tecline, Brt
Spiral Flute Tap DIN - Tecline, Brt
Industrial > Spiral Flute > Taps

Spiral Flute Tap DIN – Tecline, Brt

T832

Bright finish for non-ferrous metals
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to 2 x d1

Download PDF
Range
Features
Application
Specification
Item #
Size
Length l1 (mm)
Length l2 (mm)
Length l3 (mm)
Diameter d2 (mm)
sq
Length l4 (mm)
z
Drill Ø
Info
T8320400
M4x0.7
63
7
21
4.5
3.4
6
3
3.3
T8320500
M5x0.8
70
8
25
6
4.9
8
3
4.2
T8320600
M6x1
80
10
30
6
4.9
8
3
5.0
T8320800
M8x1.25
90
12.5
35
8
6.2
9
3
6.8
T8321000
M10x1.5
100
15
39
10
8.0
11
3
8.5
T8321200
M12x1.75
110
18
-
9
7.0
10
3
10.2
