Taps – DIN EG-UNJC

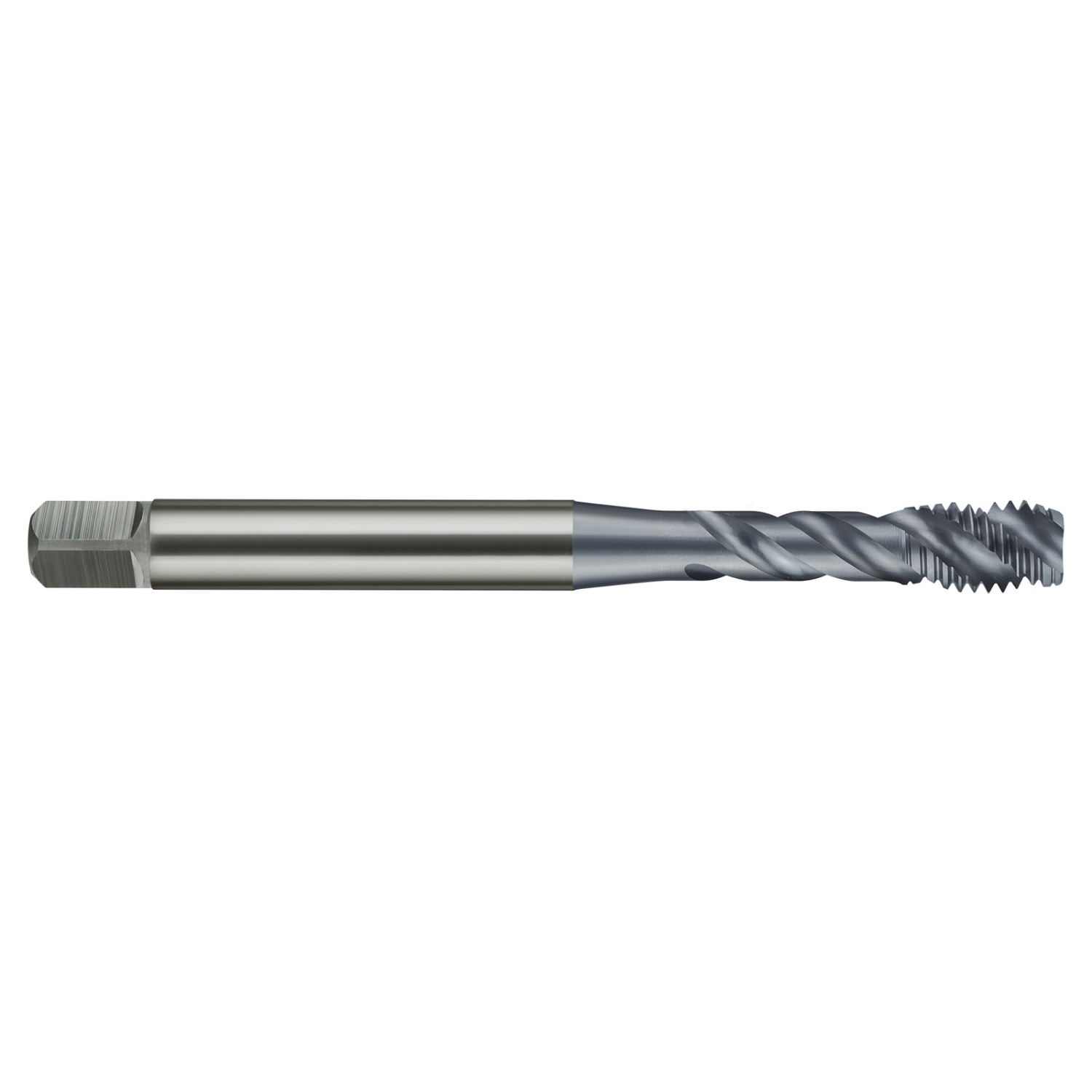

Name: Taps - DIN EG-UNJC - HPS
SKU: T854
Availability: InStock

T854

EG series, for BLIND holes in Screw-Thread-Insert Aero applications

Download PDF

Range

Features

Application

Specification

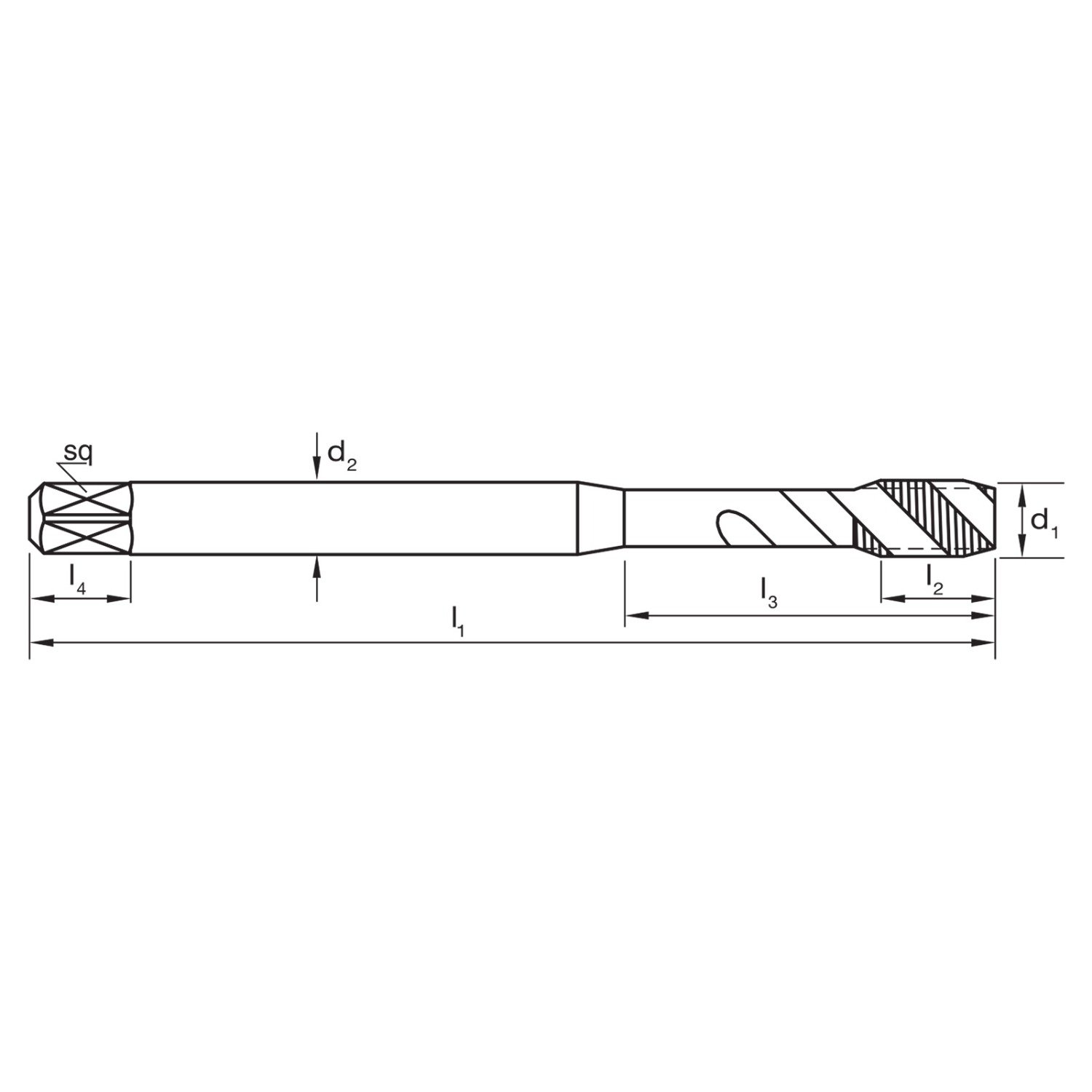

Item #

Size

Limit

Lead

Length l1 (mm)

Length l2 (mm)

Diameter d2 (mm)

Length l4 (mm)

Info

T8540284

EG-UNJC #4-40

4.50

3.4

T8540351

EG-UNJC #6-32

6.00

4.9

T8540417

EG-UNJC #8-32

6.00

4.9

T8540483

EG-UNJC #10-24

7.00

5.5

T8540635

EG-UNJC 1/4-20

8.00

6.2

T8540794

EG-UNJC 5/16-18

100

10.00

T8540953

EG-UNJC 3/8-16

100

9.00

T8541270

EG-UNJC 1/2-13

110

12.00

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	5	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Quenched & Tempered	300HB	1010MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275HB	930MPa
P	8	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	300HB	1010MPa
P	9	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	350HB	1180MPa
P	10	Steel - High alloy, cast & tool	Annealed	200HB	680MPa
P	11	Steel - High alloy, cast & tool	Hardened & Tempered	325HB	1100MPa
P	12	Steel - Corrosion resistant & cast - Ferritic / Martensitic	Annealed	200HB	680MPa
P	13	Steel - Corrosion resistant & cast - Martensitic	Quenched & Tempered	240HB	810MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180HB	610MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
M	14.3	Stainless Steel - Precipitation Hardening		250HB	840MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic		180HB	610MPa
K	16	Cast Iron, Grey (GG) - Pearlitic		260HB	880MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
K	20	Cast Iron, Malleable - Pearlitic		230HB	780MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatabl		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	25	Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatabl		130HB	460MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1		110HB	390MPa
N	27	Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)		90HB	320MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
N	29	Non-metallic - Thermosetting & fiber-reinforced plastics
N	30	Non-metallic - Hard rubber, wood etc.
S	31	High temperature alloys - Fe based	Annealed	200	680MPa
S	32	High temperature alloys - Fe based	Age Hardened	280	950MPa
S	33	High temperature alloys - Ni / Co based	Annealed	250	840MPa
S	34	High temperature alloys - Ni / Co based	Age Hardened	350	1180MPa
S	35	High temperature alloys - Ni / Co based	Cast	320	1080MPa
S	36	Titanium & Titanium alloys - CP Titanium			400MPa
S	37.1	Titanium & Titanium alloys - Alpha alloys			860MPa
S	37.2	Titanium & Titanium alloys - Alpha / Beta alloys	Annealed		960MPa
S	37.3	Titanium & Titanium alloys - Alpha / Beta alloys	Age Hardened		1170MPa
S	37.4	Titanium & Titanium alloys - Beta alloys	Annealed		830MPa
S	37.5	Titanium & Titanium alloys - Beta alloys	Age Hardened		1400MPa
H	38.1	Hardened steel	Hardened & Tempered	45HRC
H	38.2	Hardened steel	Hardened & Tempered	55HRC
H	39.1	Hardened steel	Hardened & Tempered	58HRC
H	39.2	Hardened steel	Hardened & Tempered	62HRC
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa
H	41	Cast Iron	Hardened & Tempered	55HRC
